When the system identifies an error as a threat to its normal operation, it stops the work and displays a Blue Screen of Death (BSOD) to prevent further damage.

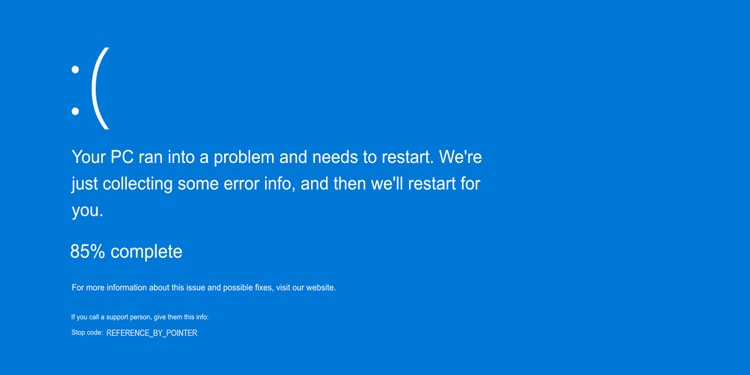

The particular BSOD with the error name Reference_by_pointer or a stop code 0x000018 is a memory issue mostly spawned by faults in drivers. You could easily solve this problem by updating the drivers in your system. But there can be some other issues hindering the process. So, you will need a few workarounds depending on the causes.
In this guide, we are going to identify the possible causes for the error and provide the working fixes.
Table of Contents
Why Does Windows Show the “Reference By Pointer” BSOD?
When the system performs any task, it stores the individual processes as objects in memory. The driver software handling the task calls pointers that denote the objects’ memory addresses. Every time it calls a pointer, it increases the reference count by one and reduces it by one after removing the pointer.
If the reference count varies inconsistently, Windows will display the blue screen with the Reference_by_pointer error. For instance, if the object is still open while the reference count is reduced to zero, Windows identifies this as a bug and shows the BSOD.
Here are some of the causes due to which the system finds errors while pointing to an object and displays the BSOD error:
- Outdated or corrupted drivers
- Corrupt system files
- Incompatible hardware, especially Plug and play devices
- Malware and Virus
- Hindering system process by Antivirus software
- Faulty programs
- Damaged hardware
How to Fix “Reference By Pointer” BSOD
In some systems, the Blue screen errors may get fixed after the automatic restart. While some PCs reopen after the error, works for a while, and display the error again.
But if your system does not open at all and gets in the BSOD loop, then you should boot the PC in safe mode to perform the fixes.
- Shut down your system by pressing the power key directly three times. The recovery environment will open up in the next boot.
- Go to Troubleshoot and select Advanced Options.
- Choose Startup Settings and click Restart.
- When the system opens again, press 4 or F4 to boot the system in Safe Mode.
Similarly, you can run the fixes such as SFC scan and DISM scan by opening the command prompt from the recovery environment.
- Boot the system in a recovery environment as mentioned above.
- Go to Troubleshoot and then Advanced Options.
- Click on Command Prompt. Run the scripts from there to perform the fixes.
Before diving into the fixes, remove all the peripherals and restart your system. Sometimes, new hardware and their drivers may be interfering with the system. If the issue persists, let’s fix it in your system right away.
Search for the Particular Cause
A computer runs a number of programs, drivers, and system processes that anything may have caused the error. So, diagnosing the error for the particular cause is the first step while solving the BSOD.
Let’s see the methods you can use to find the cause.
Find the Name of Error File in Blue Screen
Sometimes, the Reference by pointer BSOD displays the name of the file or process responsible for it. Errors in
Atikmdag.sys, wdf01000.sys, tcpip.sys, ntoskrnl.exe, etc., are some of the frequent files the BSOD shows.
If you look at the details of
Atikmdag.sys, you will find that this manages the graphics drivers. And you can move on towards resolving that particular driver software by either reinstalling or removing them.
But your system may restart automatically after showing the blue screen, and you may not be able to note the name. So, you should disable automatic restart during system failure. Let’s see the way to do it.
- Press Windows + ‘R’ and type
sysdm.cplto open System Properties.

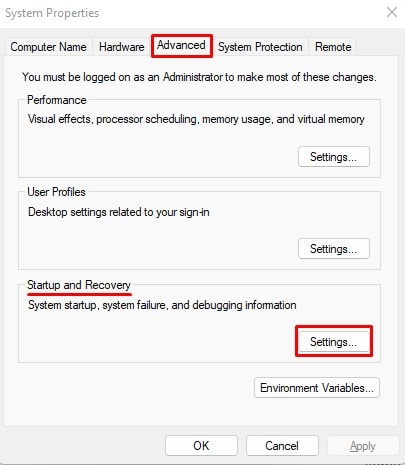

- Go to Advanced and Click on Settings under Startup and Recovery section.

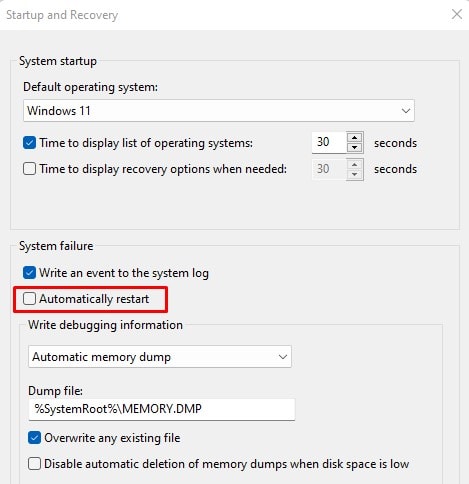

- Uncheck the Automatically Restart box and click Ok.
Next time the BSOD appears, note the name and search for the error.
Look Through the Mini Dump File
Your computer saves the error details and diagnostic reports in a dump file when a BSOD appears. You can then look into the file to see what actually causes the issue and move towards fixing it.
But, you will need a separate program, WinDbg, to view the dump files. Let’s see the way to access the minidump using WinDbg.
- Download and Install WinDbg in your system. You can also download the program from Microsoft Store.
- Open WinDbg Preview with administrator privilege.
- Press Ctrl + ‘D’ and type
%windir%\Minidumpin the search bar to open the dump file.
- Alternatively, you can click on File, select Open dump file, click on Browse, and type
%windir%\Minidump. Select the dump file and let it load.
!analyze -vcommand in the terminal at the bottom of the window. If you do not find the terminal, click on the View menu and select Command.
- Look for the Module Name and observe the details or google it to find the culprit.
Proceed to resolve the problem after finding the cause. Sometimes, the program or file may not be the actual problem, and other bugs may be interfering with it. So, you should also look for other processes in the dump file that may be the real issue. You can find the minidump files details on the internet if the cause is unclear to you.
Run Driver Verifier
As we mentioned earlier, the BSOD is mostly caused by faults in drivers. So, it is beneficial to find the faulty one and reinstall or remove it.
Driver verifier is a program that runs diagnostic tests on the drivers. It puts them under maximum stress and shows a BSOD with
Driver_Verifier_Violation_Detected if it finds any issue. Then, you can check the minidump file to identify the cause.
Now, Let’s see how you can run the Driver verifier.
- Press Windows + ‘R’ to open the Run dialog box. Enter
verifierto open Driver Verifier.

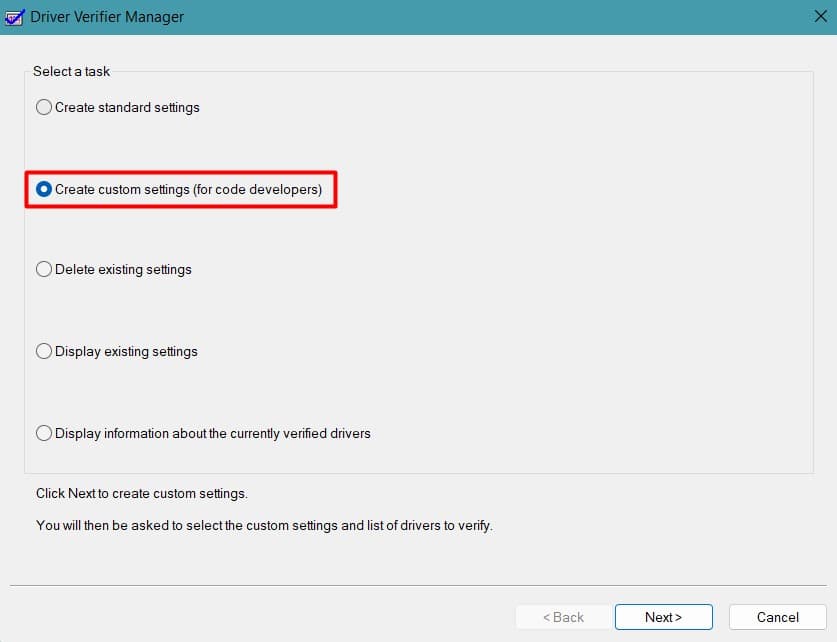

- Check the Create Custom Settings box and click Next.

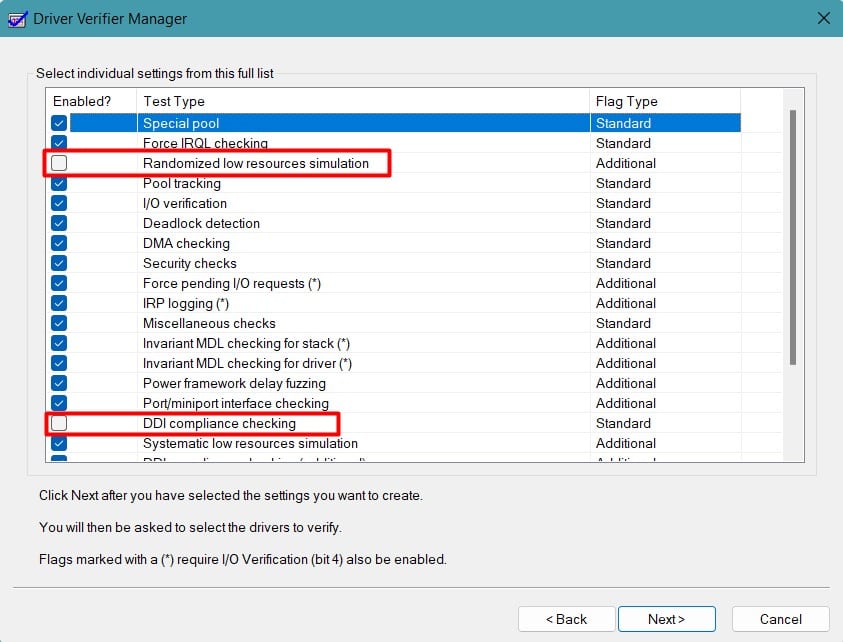

- Choose all the options except Randomized low resources simulation and DDI Compliance checking. Low resources simulation causes some memory allocation to fail, and DDI Compliance checks the driver’s compatibility with OS, both of which may cause more damage.

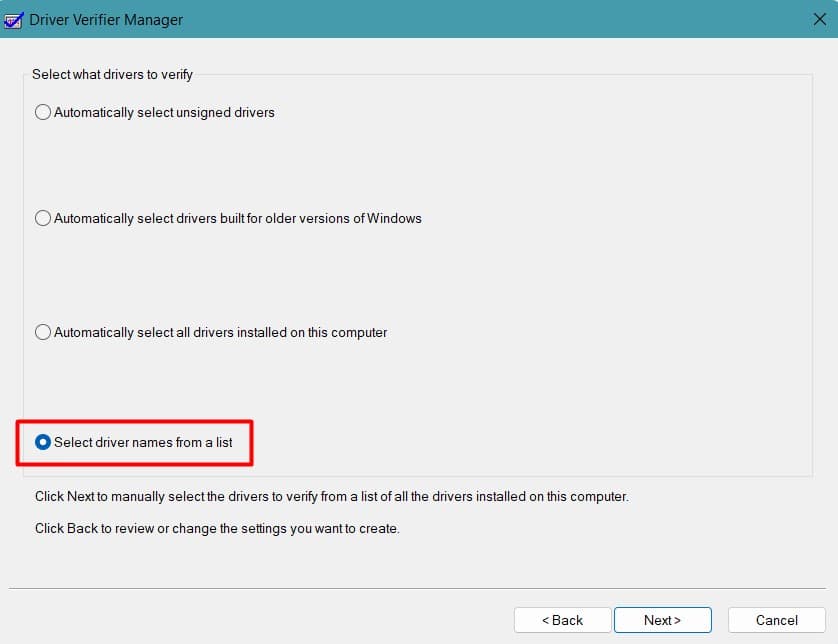

- Choose Select driver names from a list and select only the non-Microsoft drivers.
- Click Finish to run the verifier.
- Open Command Prompt with administrative privilege and type
verifier /querysettingsto confirm that the Driver verifier is running.
If it finds the error, you can check the minidump file and rectify the issue. You should stop the Driver verifier by entering the command
verifier /reset in the command prompt.
Using the Driver verifier is risky. Sometimes, the driver verifier may show the BSOD in a loop, due to which the Windows may fail to open. So, we have a detailed guide to resolving the Driver Verifier Detected Violation error.
Uninstall and Reinstall Drivers
A corrupted driver may not be able to read the process causing the reference count of the pointer to increase or decrease abnormally in the memory. As a result, the BSOD appears in your system. Similarly, outdated drivers are equally responsible as they may not be compatible with your system or might have bugs.
You can solve this by reinstalling or updating the drivers in your system. Most of the time, you can fix the issue if you update the drivers with faults, as shown by the driver verifier. Generally, this BSOD is found to be arisen by Graphics and Network card drivers.
- Press Windows + ‘R’ and type
devmgmt.mscto open Device Manager.

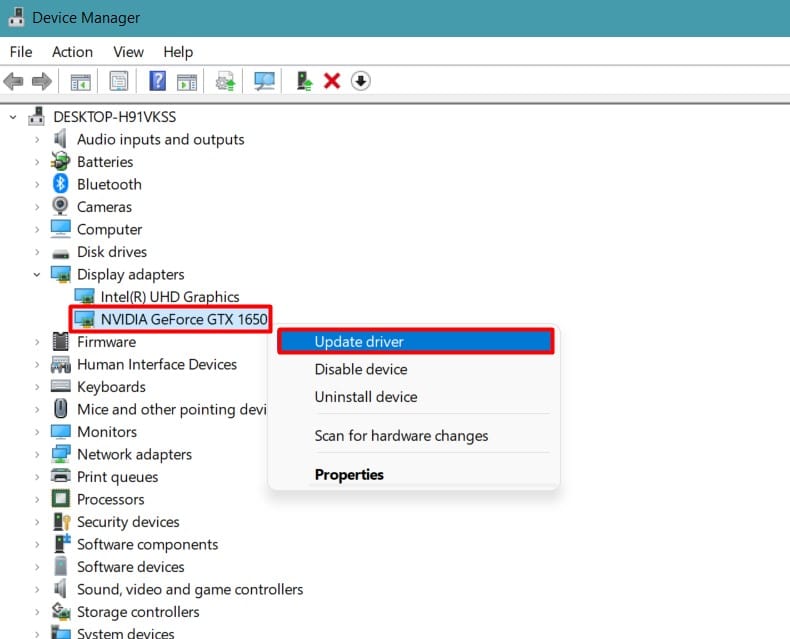

- Double click on the device name and right-click on the faulty driver.
- Click Update Driver and choose Search automatically for drivers.
You can also uninstall the driver and reinstall it. But, we advise you to install the latest version from the manufacturer’s website. The driver installed automatically by the system may be outdated and may not bring any changes.
So, you should first disable automatic driver installation and then proceed towards installing them manually.
- Press Windows + ‘R’ and enter
systempropertieshardwareto open the Hardware tab of System Properties.
- Click on Device Installation Settings.

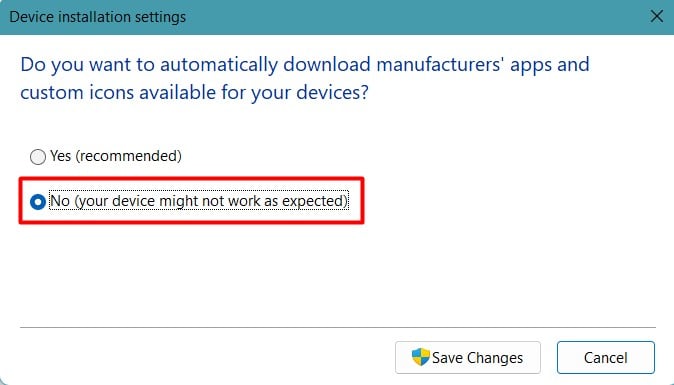

- Check No and click Save changes.
- Now, go to the Device manager and uninstall the driver.
- Download the latest version of the driver from the manufacturer’s website and install it manually.
See if the problem still persists. If it does not work in regular mode, you can perform these operations in safe mode, as mentioned earlier.
Run Windows Memory Diagnostics Tools
If the RAM has some errors, then the software may not be able to point to the object’s address appropriately, thus causing the error.
So, you should check the memory for any problems by running the Windows Diagnostics tool.
mdschedin the Run dialog box after pressing Windows + ‘R’.
- Click Restart now and check for problems in the Windows Diagnostic tool.
If the diagnostic test verified that you have some errors in your memory, then you can check the RAM and the memory slots. For that, try changing the slot if you have a single RAM. If you use dual RAM, you can use one at a time, trying both slots. You can also get a spare memory to see if that causes the BSOD to vanish.
If you find that the memory is faulty, you may have to change the RAM. You should visit the nearest service point to fix such issues. However, before that, please go through the memory fixes below that you can try for yourselves.
Repair Corrupted System Files
When the system runs any operation, it stores the processes in several memory addresses. If a system file gets corrupted, then it may keep reserving the address even after the task is completed. So, when a new process is started, the system may experience pointing errors to that address.
You should run the following scans to repair the corrupt system files and solve the issue.
- Press Windows + ‘R’ and enter
cmd. Press Ctrl + Shift + Enter to open the Command prompt with administrative privilege.
- Run DISM scan with command
DISM online /cleanup-image /restorehealth. This will repair the DLL cache file by downloading them through windows update.

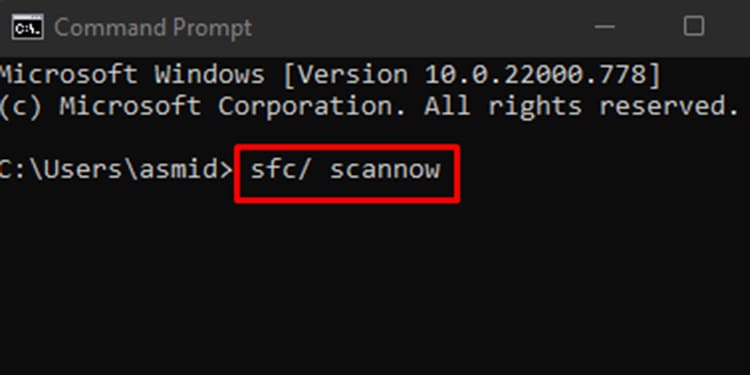

- Now run the SFC scan with the command
sfc /scannow. This will restore the corrupted files from the DLL cache file.
- Similarly, run a CHKDSK scan with
chkdsk /r /xto repair any disk errors.
Restart your system to see if the problem is resolved.
Remove Temporary Files
Your computer stores the loading configurations as cache and logs of any applications in Temp and Prefetch folders. If the information in those folders is corrupted, then the memory may be trying to retrieve such data, hence displaying the BSOD.
You can easily empty these folders in the following ways.
- Press Windows + ‘R’ and enter

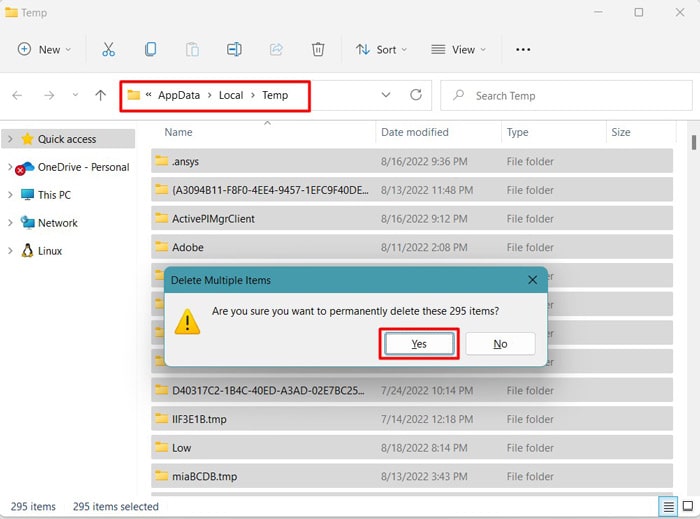

- Press Ctrl + ‘A’ to select all and then delete them.
- Again, open
%tmp%from the Run dialog box and empty the folder as well.
- Do the same by opening
prefetchfrom the Run dialog box.
- Similarly, type

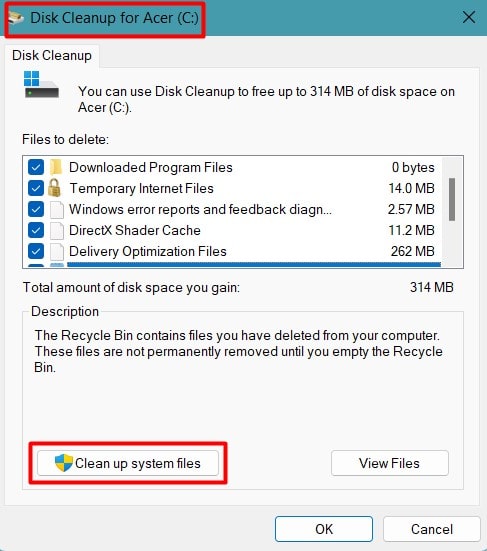

cleanmgrto open Disk Cleanup utility.
- Select all the folders and click Cleanup system files.
Examine if the problem still appears.
Perform Clean Boot and Remove Problematic Software
Usually, a lot of programs function in the background, and some run automatically, even from startup. To add to this, some programs may have faults in them, hindering the smooth system operation. This may cause the memory to malfunction and hence the BSOD.
So, you should try performing a clean boot of your system and identify the software with fault by running them one by one. Let’s see how to do it.
- Press Windows + ‘R’ and type
msconfigto open System Configuration.
- Uncheck the Load startup items under Selective startup.
- Go to the Services tab, check the Hide all Microsoft services box, and click Disable all.
- Find the Startup tab and click on Open Task Manager.
- Select the programs one by one and click Disable.
- Click Apply on the System Configuration window and restart your system.
Use the system for a while and see if the BSOD appears. If the error does not show up, then open Task manager and start the programs individually to see which one causes the issue. Uninstall the program when you find the culprit. You can also remove any heavy software that may cause memory problems.
If you have overclocked your system to improve its performance, it may have stressed the system as well as overheated it. This can cause the system to misbehave, hence your meeting with the BSOD.
You should revert the settings by simply resetting the BIOS or uninstalling the overclocking software.
- Restart your system. Press F2, F12, Delete, or respective keys repeatedly to get to the BIOS page.
- Press the key associated with Loading Default Settings. Mostly it is F9.
- Save the settings and restart your system.
- If you used any program to overclock your CPU or GPU, then you can simply uninstall the program to reset the original settings.
Examine if the BSOD appears again.
Run Virus Scan
Remember COVID 19? Malware is just digital COVID. They corrupt the system files or occupy the memory unnecessarily, causing the computer to malfunction.
You can perform a virus scan on your computer using the built-in Windows defender tool.
ms-settings:windowsdefenderin the Run dialog box after pressing Windows + ‘R’.
- Click on Virus & Threat Protection.
- Go to Scan Options.

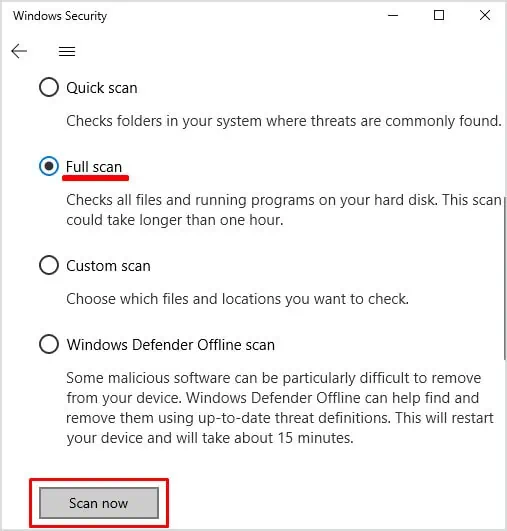

- Select Full scan and click on Scan now.
You can also use third-party antiviruses to remove the malware. However, they use a lot of memory themselves. In addition to this, they can interfere with the driver software sometimes. This will cause the drivers to malfunction, and the BSOD will show up. So, in such a case, you should disable or uninstall the third-party antivirus software.
Perform System Restore
Whenever you install some unauthorized drivers or perform windows updates, the computer creates a restore point before installing them. It does so as a failsafe to avail an option to resolve any error afterward. Even if no such automatic points are created, the system makes one every week, and you also have an option to create the restore point manually.
If the BSOD appeared after some updates or installation, you could try reverting your system back to the point where your computer was working fine. Let’s go through the process together.
- Press Windows + ‘R’ to open Run and enter
rstrui.exeto open the System Restore window.

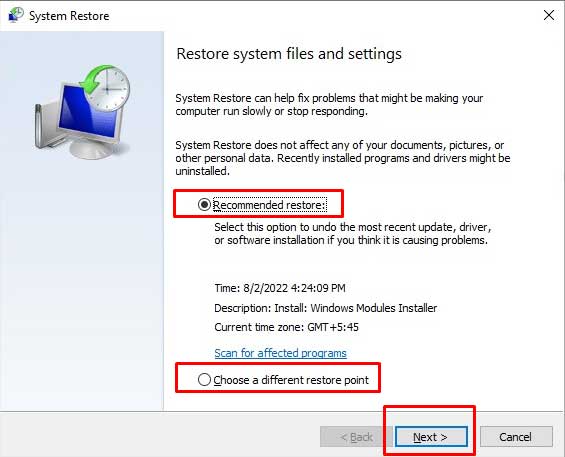

- You can select either Recommended restore point or choose a different point and click Finish.
You should find the BSOD error fixed after the restore.
Reset or Reinstall Windows
If the fixes did not resolve the BSOD error in your PC, you could reset your Windows. Let’s see how you can do it.
- Press Windows + ‘I’ to open Settings.

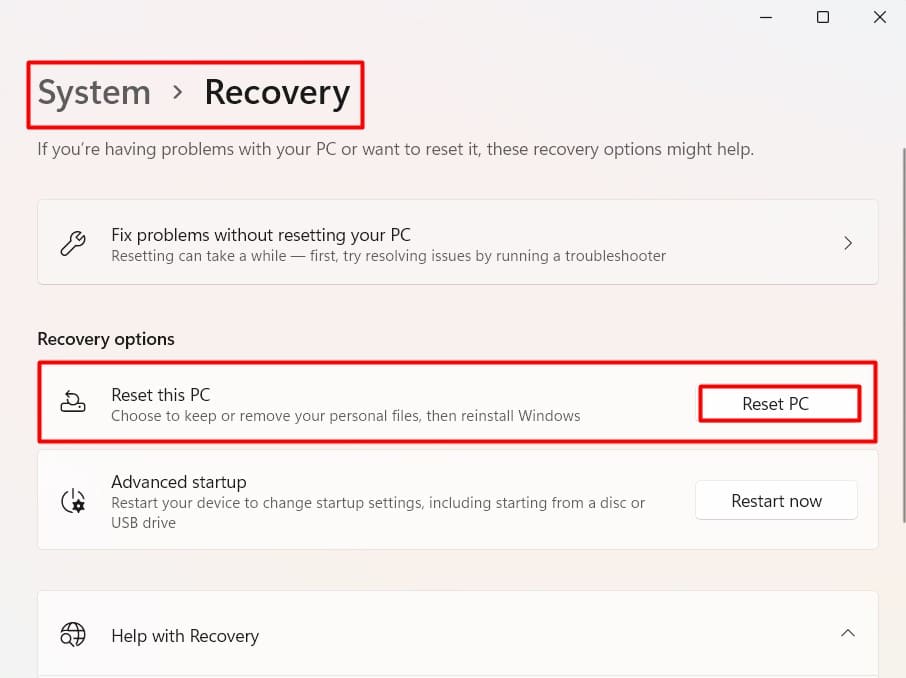

- Find the Recovery option and click on Reset PC. You can choose either the Keep my files or the Remove everything option.
- Select Local Reinstall or Cloud Download. We recommend you perform a Cloud download if you are connected to the internet as it downloads fresh Windows software.
- Follow the instructions accordingly.
If resetting does not work, you will have to install a fresh operating system on your PC.
