Ethernet Port Not Working On Motherboard? Here’s How to Fix It

utkarshaBy utkarshaJune 18, 2022
motherboard-ethernet-port-not-working

It’s a known fact that an ethernet connection is faster and more stable than a wireless one. However, an ethernet connection is also more prone to technical and hardware-related issues than your Wifi. And usually, these issues emerge from the ethernet port of your motherboard.

Unless the only fix for you is to buy a USB ethernet adapter, this guide shall take you through all the alternative methods you can seek to fix your port issues from the comfort of your home.

Continue following the guide till the end to fully understand the problem and potentially fix your issue. So, let’s being!

Table of Contents

  • Why Is My Ethernet Port Not Working?
  • How to Fix Ethernet Port Not Working
    • Ensure Your Ethernet Port Is Not Bad or Broken
    • Ensure Your Network Interface Card Is Working Properly
    • Enable Ethernet Connection
    • Check Your Network Details
    • Run the Network Troubleshooter
    • Diagnose Your Network Adapter
    • Turn Off Antivirus Software
    • Update the Network Driver
    • Reset Your Network Settings
    • Reset Network Stack
    • Change Your Ethernet Adapter’s Power Management Settings
    • Disable EEE for Your Network Adapter
  • What to Do if My Ethernet Works but the Port Doesn’t?
    • Reinstall Network Driver
    • Rollback the Network Driver
    • Unload Power From Your PC
    • Enable Ethernet Adapter on BIOS
    • Use a USB to Ethernet Adapter

Why Is My Ethernet Port Not Working?

Your ethernet port is probably electrostatic-sensitive. That means, there is always a possibility of your port failing to function due to the built-up static charges within it.

The stress from the cable on your port can also sometimes break down the connectors on your motherboard. Other than that, here are some of the reasons why your ethernet port could be not functioning.
  • Driver issues
  • Stress on the port
  • Misconfigured network details
  • Interference from antivirus or firewall
  • Interference from Energy Efficient Ethernet (EEE)
  • Ethernet disabled on the BIOS
  • Faulty network card
  • Invalid network cache
  • The unfavorable power output of the network adapter

How to Fix Ethernet Port Not Working

There are a ton of methods to fix your ethernet connection and its port in the motherboard. The definitive fix for your issue could differ from other users.

However, as we are here to help you, we advise you to follow all the methods listed below until your problem gets resolved.

Ensure Your Ethernet Port Is Not Bad or Broken

First things first, you have to ensure that your ethernet port is not bad or broken. Usually, when you insert the LAN cable with a certain amount of force, the port is affected by a certain amount of stress, corresponding to the force applied.

This may cause the port to break down, leaving you in a frustrating and confusing situation. So, plug in your ethernet cable and check if the port is lighting up or not. If it is, then it generally signifies a fully functioning port.

Additionally, you have to ensure your cable is not damaged or broken. So, turn on a different computer and try to connect to the internet using the same cable. If it fails to connect, your cable may be damaged and you would have to purchase a new one.

Ensure Your Network Interface Card Is Working Properly

The network card must work properly in order for you to connect to the internet. It acts as a mediator between your computer and the internet. Any request you make for surfing the web is first transferred to your network card, which in turn converts this request into electric impulses.

So, a damaged NIC (network interface card) prevents you from accessing the internet. Hence, you have to ensure your network card is working properly by pinging the loopback address. Here are the steps to do so:

  1. Press Win+R to open the run command box.
  2. Type cmd and hit Ctrl + Shift + Enter to run it as an administrator.
  3. Enter the following command:
    ping 127.0.0.1
    cmd_ping
  4. If you don’t get any error prompts, your network card is working well.

Enable Ethernet Connection

This step might feel too simple to be true, but a disabled ethernet connection often causes confusion during stressful scenarios. So, it’s better to check the status of your ethernet connection before diving into any technical stuff.

  1. Press Win+R to open the run command box.
  2. Type and enter devmgmt.msc to open the device manager.
  3. Expand the Network Adapters section.

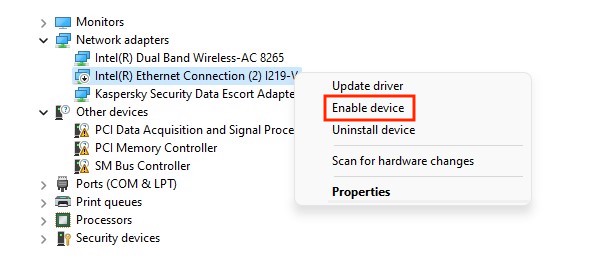

  4. Right-click on your ethernet network device and select Enable device.
    enable_device

Check Your Network Details

In scenarios where your system fails to recognize the ethernet connection, the network details are often found to be misconfigured. So, a wrong configuration of your network settings can also make your port seem nonfunctional.

Hence, we have to be sure that your system can extract the network information automatically. And the steps to do so are as follows:

  1. Press Win+R to open the run command box.
  2. Type and enter ncpa.cpl to open the network configuration panel.
  3. Now, right-click on the ethernet connection to your system and select Properties.

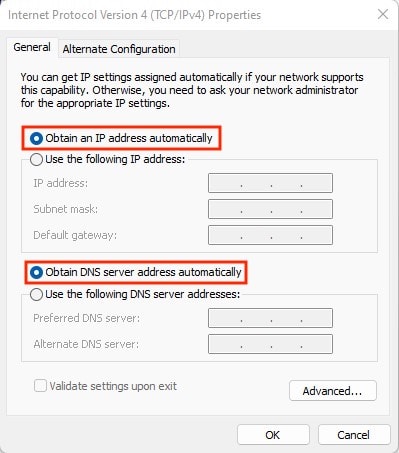

  4. Double click on Internet Protocol Verison 4 (TCP/IPv4).
  5. Here, checkmark the option box for Obtain an IP address automatically and Obtain DNS server address automatically.
    auto_IP
    However, if your network uses the IPv6 protocol, make these changes on (TCP/IPv6) instead of IPv4.

Run the Network Troubleshooter

The network troubleshooter on Windows can automatically scan for, detect and fix certain issues regarding your internet connection and the network adapter. Hence, you can let Windows figure out and solve the issue itself. For this:

  1. Press Win + I to open the settings.
  2. Select System from the left panel and click on Troubleshoot.
  3. Select Other troubleshooters.

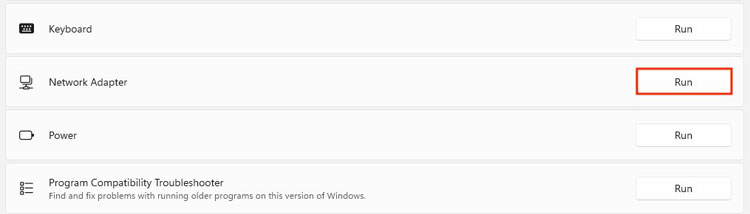

  4. Click Run that’s beside Network Adapter.
    run_network_adapter
  5. Choose your Ethernet connection when prompted, and follow the on-screen instructions.

Diagnose Your Network Adapter

Diagnosing your ethernet adapter can bring light to the hidden issues within this adapter. You can easily diagnose your network adapter through the control panel and this provides an alternative way of troubleshooting your problem.

Here are the steps to do so:

  1. Press Win+R to open the run command box.
  2. Type and enter ncpa.cpl to open the network configuration panel.
  3. Here, right-click on your ethernet adapter and select Diagnose.
    diagnose
  4. Follow the on-screen process to effectively diagnose your adapter.

Turn Off Antivirus Software

Not all antivirus software is compatible with your broadband connection and can hence, block the information flow to and fro between your system and the network. This can cause certain glitches within your system and can make it seem like there is no internet connection at all. So, when your computer is not accepting the network signal, the ethernet port may seem dysfunctional as well.

You can disable any antivirus software you own to try and fix your issue. Third-party antivirus software you own can be seen on the Windows taskbar’s system tray. So, from here, simply right-click on your antivirus and select Disable.

Update the Network Driver

The ethernet port on your motherboard cannot recognize your network adapter if the network driver is outdated. So, it’s important to update this driver to the latest built. A fresh update can incorporate newer system patches on your device, and your port could be up and running in no time.

This step is vital if your ethernet port works on an older system but not on a newer motherboard, especially on the one you built yourself. So, the steps below show how you can update your network driver:

  1. Press Win+R to open the run command box.
  2. Type and enter devmgmt.msc to open the device manager.
  3. Expand the Network adapters section.

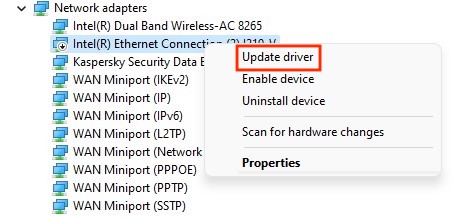

  4. Right-click on your ethernet driver and select Update Driver.
    update driver
    Now, there are two methods you can follow to continue further.
  5. If you have access to Wifi, select Search automatically for updated driver software when prompted. This option browses and automatically installs the latest driver via the internet.
  6. However, if you don’t have Wifi access, you have to manually download the latest driver using another computer. You can search for it on your driver manufacturer’s website, download it, and copy it on a USB.
  7. Now, insert the USB into your computer.

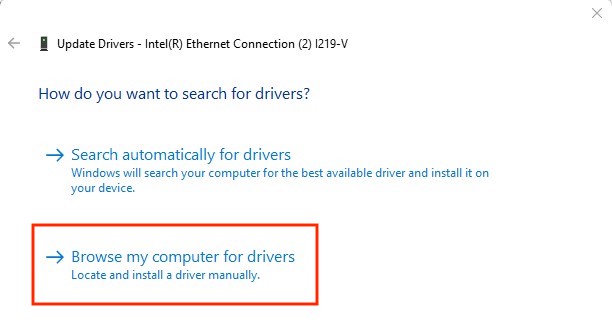

  8. On the driver update window, select Browse my computer for driver software.
    browse_my_comp
  9. Locate the driver setup file, select it and wait for the installation process to complete.

Reset Your Network Settings

Resetting your network settings is known to fix certain connection issues regarding both the ethernet and Wifi. So, it’s as straightforward as it sounds. A network reset will erase all the network and internet-related data stored on your computer.

Hence, the corrupted network cache and configurations will be fixed, which can in turn fix your ethernet port issues. So,

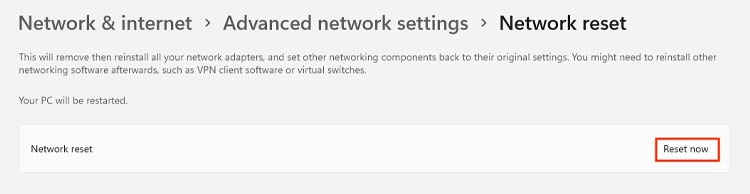

  1. Press Win + I to open settings.
  2. Select Network & Internet from the left panel.
  3. Click on Advanced network settings.
  4. Now, select Network reset.
  5. Finally, click on Reset now that’s beside Network reset.
    reset_network

Reset Network Stack

The network stack is a set of network protocols that transfers data to and fro between two devices.

So, resetting a network stack resets the IP subnet mask, DNS server, and other IP protocol settings. It clears the network cache and is known to fix configuration errors as well. To reset the network stack, follow these steps below:

  1. Press Win + R to open the run command box.
  2. Type cmd and hit Ctrl + Shift + Enter to run it as an administrator.
  3. Type and enter the following command:
    netsh int ip reset
    ipconfig /release
    ipconfig /flushdns
    ipconfig /renew
    netsh winsock reset
  1. Once the process completes, restart your computer to incorporate your changes.

Change Your Ethernet Adapter’s Power Management Settings

At times, the Windows power management tool feels tricky. On the one hand, it conserves your battery life and on the other, it sometimes disables certain system features and applications from operating at full power.

So, for now, it’s wise to turn off this setting and find out whether it fixes your issue or not. Here’s how to do so:

  1. Press Win+R to open the run command box.
  2. Type and enter devmgmt.msc to open the device manager.
  3. Expand the Network adapters section.
  4. Right-click on your ethernet driver and select Properties.

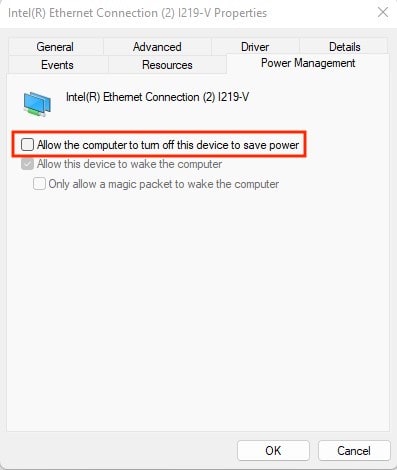

  5. Go to the Power Management tab.
  6. Uncheck the option box for Allow the computer to turn off this device to save power.
    allow_to_save_power
  7. Click OK to save your changes.

Disable EEE for Your Network Adapter

The EEE (Energy Efficient Ethernet) is a networking standard designed to reduce the total power consumption of the physical layer ethernet devices (e.g. a modem) by 50% or more.

This enables the ethernet to use power only while transmitting data. So, disabling the EEE could help fix your ethernet connection and the ethernet port issues as well. The steps to disable EEE are:

  1. Press Win+R to open the run command box.
  2. Type and enter devmgmt.msc to open the device manager.
  3. Expand the Network adapters section.
  4. Right-click on your ethernet driver and select Properties.

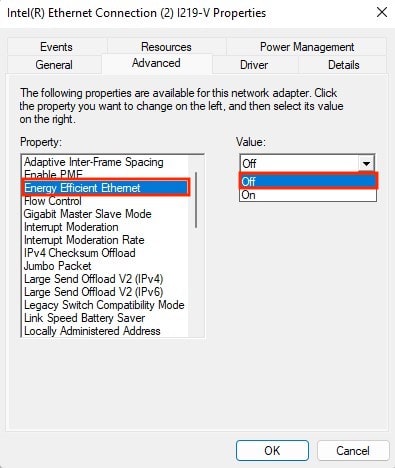

  5. Go to the Advanced tab.
  6. Click on Energy Efficient Ethernet under Property.
  7. Set the Value to Off.
    EEE
  8. Click OK to save your changes.

What to Do if My Ethernet Works but the Port Doesn’t?

Let’s say you tested your ethernet cable on a different system, and it turns out to work just fine. But, the ethernet port on your motherboard doesn’t seem to function or “wake up” no matter which aforementioned steps you followed.

In such a case, your first instinct should be to ensure that the port is lint and dust-free. However, ethernet ports are often prone to damage and degradation. The connectors on your motherboard are prone to breakage and a faulty port often returns a Network cable unplugged error on your screen.

So, this section mainly focuses on the fixes and workarounds you can apply when your ethernet works but the port doesn’t.

Reinstall Network Driver

You can completely delete the ethernet adapter from your system and reinstall a fresh copy of it.

This is useful because reinstalling your network driver discards the bugs and glitches that came along with the previous build. The installer’s temporary, probably buggy, files from your system are also discarded and this frees up a significant amount of storage as well.

So, reinstalling the network driver can bring your port back to life. This can also help with the port not lighting up the issue. The steps below show how to do it:

  1. Press Win+R to open the run command box.
  2. Type and enter devmgmt.msc to open the device manager.
  3. Expand the Network adapters section.
  4. Right-click on your ethernet driver and select Uninstall device.

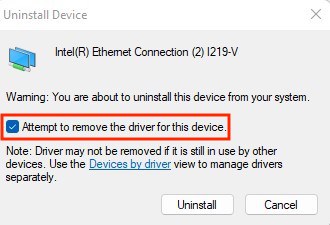

  5. Mark the option box for Attempt to remove the driver from this device.
    attempt_to_remove_this_driver
  6. Then, click Uninstall.
  7. Once the process completes, restart your computer.
  8. Then, open Device Manager once again.
  9. Right-click on your computer’s name and select Scan for hardware changes.
  10. Follow the on-screen process to automatically scan for and install the required drivers.

Rollback the Network Driver

If your ethernet port started to show signs of problems after installing a new driver update, then rolling it back to the previous one could fix your issue. This could light the ethernet port back up and see you surfing the web in no time.

So, here’s how you can rollback your network driver:

  1. Press Win+R to open the run command box.
  2. Type and enter devmgmt.msc to open the device manager.
  3. Expand the Network adapters section.
  4. Right-click on your ethernet adapter and select Properties.

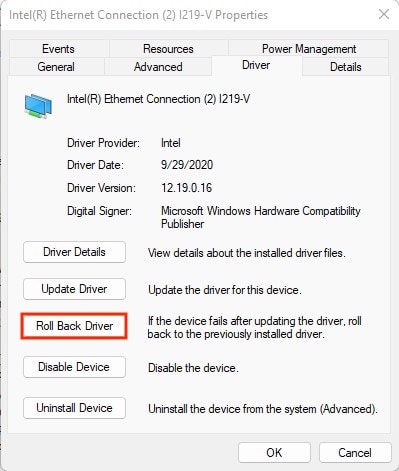

  5. Go to the Driver tab and select Roll Back Driver.
    rollback
  6. Click Yes when prompted to complete the process.

Unload Power From Your PC

Unloading power completely from a computer seems to fix some minor hardware issues on your system. The main goal is to dissipate all the electricity from your computer and restart it in hopes of fixing your problem. This too can help with the issue of your ethernet port failing to light up. So,

  1. Turn off your computer.
  2. Unplug the power cord from your system.
  3. Remove the battery for laptops if possible.
  4. Hold the power button for about 45-60 seconds to dissipate all the electricity.
  5. Reattach your battery.
  6. Plug the computer back in.
  7. Turn on your computer.

Enable Ethernet Adapter on BIOS

The BIOS is a sensitive place to play around in. A slight change in the BIOS can see your computer’s function in a totally different manner.

The ethernet connection might be disabled on the BIOS, either by you (knowing or unknowingly) or by default by your motherboard manufacturer. So, you can (re)enable the ethernet adapter on the BIOS to allow your port to light up and function properly.

Here’s how to do so:

  1. Restart your system.
  2. Press the correct button configuration depending on your motherboard manufacturer to enter the BIOS settings.
    OBp4iXfcpjAFwioq4E4dLu9h4eTXlTmpLaMKXVtwbTCgVLPAjU3qRb9YRyLcsJDejZFccvtl7IEHYnDpA zvF8OgS mDqnvp54YkCiAKZv C4bJ ziiyV9Vt5LtldLR45A2unHVfU6Onp51fuw
  3. Navigate to the Advanced tab.
  4. Find and select the Integrated Peripherals, Onboard Devices, or On-Chip PCI Devices option.
  5. Click on Integrated LAN, Onboard Ethernet, or other options implying the same thing and select Enabled.
  6. Press F10 to save your changes and restart your computer.

Use a USB to Ethernet Adapter

If nothing works, the only thing you can possibly do is to invest in a USB to ethernet adapter. It is a device that’s capable of connecting the ethernet cable to a USB port.

It returns a plug-n-play feature, which means, you can just plug the USB into your computer, plug the ethernet cable into the adapter and directly connect to the internet.

fix
utkarsha

Utkarsha is a tech writer who specializes in writing about macOS. He has been using the platform since its earliest days, and has written extensively about its various iterations. He also enjoys watching movies and traveling.

Related Posts

wifi-keeps-disconnecting-windows-11

Wi-Fi Keeps Disconnecting on Windows 11? 9 Ways to Fix It

February 26, 2023
windows-cannot-access-network-drive

Fix: Windows Cannot Access Network Drive

February 23, 2023
how to check wifi speed in laptop

3 Simple Ways to Check Wi-Fi Speed in Laptop

February 23, 2023
network_adapter_not_working

Network Adapter Not Working? 15 Ways to Fix It

February 22, 2023
Surface WiFi Not Working

Why is My Wi-Fi Not Working on Surface Laptop? 10 Ways to Fix It

February 22, 2023
change-network-profile-windows

4 Ways to Change Network Profile in Windows

February 22, 2023
Add A Comment

Leave A Reply Cancel Reply

Latest Posts
Memory-Compression

What is Memory Compression in Windows? Should You Enable or Disable It

March 1, 2023
dism-vs-sfc-vs-chdsk

DISM, SFC, CHKDSK: What’s the Difference

February 28, 2023
bios-settings-for-gaming

Best BIOS Settings for Gaming

February 16, 2023
You may also like
how-to-clean-hp-printer-rollers

How to Clean HP Printer Rollers

March 3, 2023
keyboard input lag

9 Ways to Fix Keyboard Input Lag

March 3, 2023
keyboard key is stuck

How to Fix a Stuck Key on a Keyboard

March 3, 2023
Recommended
Cookie Clicker Garden Guide

Cookie Clicker Garden Guide to Unlocking Every Seed

September 26, 2021
monitor no signal

Computer Turns On But Monitor Says No Signal (9 Ways To Fix)

November 10, 2022
Facebook Twitter Pinterest
  • Home
  • About Us
  • Our Team
  • Editorial Guidelines
  • Privacy Policy
  • Affiliate Disclosure
© 2023 TechNewsToday, editor@technewstoday.com | Tech Central Pvt. Ltd.

Type above and press Enter to search. Press Esc to cancel.
