How To Setup Multiple Monitors on Windows 11

Abhishek SilwalBy Abhishek SilwalMay 29, 2022
windows 11 multiple monitors

Most people find one display screen enough for office as well as casual use. But if your work is more complex, you may find it quite limiting.

Using many monitors can increase your productivity. The time you waste switching through windows may not seem like much, but they add up. Running many applications is also far more convenient with more screens.

In this article, we have provided a step-by-step guide on setting up multiple monitors on Windows 11.

Table of Contents

  • Why Use Multiple Monitors on Windows 11?
  • How to Setup Monitors on Windows 11?
    • Check Compatibility, Graphics Card and Ports and Cables
    • Connect Monitor to Windows 11
      • Add a Wired Monitor on Windows 11
      • Add Wireless Monitor on Windows 11
      • Add Two or More Monitors on Windows 11
    • Setup Multiple Monitors on Windows 11
    • Customize Multiple Monitor Settings
    • Set Background and Taskbar Settings
    • Setup GPU Settings for Multiple Monitors
  • Related Questions
    • How to Fix External Display Not Working on Windows 11?

Why Use Multiple Monitors on Windows 11?

There are many possible reasons for people to use multiple monitors. You can do so for the following purposes:

  • Better gaming experience.
  • Convenient coding and debugging for programmers.
  • Creating designs and simulations.
  • Video conferences with many people.
  • Productivity for office work and studies.

How to Setup Monitors on Windows 11?

The process of setting up monitors in Windows 11 is very simple. You need to connect them physically and set up the screen display settings.

Check Compatibility, Graphics Card and Ports and Cables

The first step is to check if your computer supports multiple monitors. The compatibility depends on your OS and graphics card. Windows 11 does not have a limit on the number of external monitors.

So, make sure to check the specifications of your graphics card. Most support adding another monitor, but they may not handle more than that. You can find the information on the manufacturer’s website.

Another thing to check is the type of port on your PC and the monitors. The standard video ports are VGA, DVI, HDMI, DisplayPort, and Thunderbolt.

Your laptop should have at least one of these ports on its sides or, very rarely, on its back. For desktop PCs, you’ll find them on the CPU, often directly connected to the GPU. For your monitors, check on their back or sometimes on their sides.

Each type of port can only accept certain cables. But you can use adapters to connect between varying ports.

Connect Monitor to Windows 11

Now, you need to physically connect the Monitors to your PC. It doesn’t matter if the monitors are different or have different max resolutions. You can connect any monitor if your PC supports it.

 First, position your monitors according to your preference. Then move on to the sub-sections below depending on the number or type of monitors.

Add a Wired Monitor on Windows 11

Adding one external display to your system is quite simple. You only need to connect the device using the ports available.

Different display connectors provide different options. So it’s better to check the built-in display ports before buying the PC or the monitors if you need to set up multiple monitors.

  • Thunderbolt connectors support ultra-fast video and audio transmission. You can also daisy-chain Thunderbolt displays if you have monitors that support them.
  • DisplayPort connectors have higher bandwidth capacity for video and audio transmission. So it’s almost always the best option. You can also daisy-chain monitors that have DisplayPorts.
  • HDMI and VGA cables also support video and audio transmission, but they are inferior to DisplayPorts. Still, unlike VGA, HDMI is a digital connector. So, it’s always going to be better than VGA. In fact, most modern computers don’t have VGA ports.
  • DVI cables do not support audio or 4k video transmission. But it’s a good choice to get high refresh rates on a 1080p monitor.

Add Wireless Monitor on Windows 11

Adding a wireless monitor is easier as you don’t have to worry about the cables and ports. To add such a monitor to Windows 11,

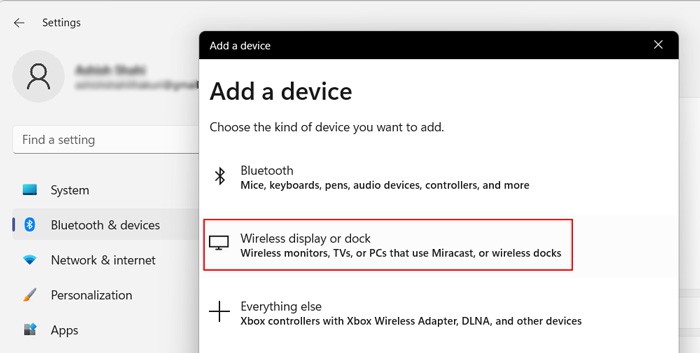

  1. Open Settings and go to Bluetooth & devices.
  2. Enable Bluetooth and click + Add device.
  3. Click Wireless display or dock.
    add-wireless-monitor
  4. Choose your monitor and follow the on-screen instructions.

Add Two or More Monitors on Windows 11

Increasing the number of monitors to two makes adding them a much more complex process. Most PCs only have a single port for display output. So, you need to use one of the following methods to add more than one screen:

  • If you have DisplayPort or Thunderbolt-compatible devices, you can create a daisy chain of the monitors.
  • You can also use multi-head display splitters or docking stations to connect many monitors. Docking stations are the more powerful options. And many older splitters only allow mirroring the same display.
    The Thunderbolt Dock Ports
  • USB Adapters also allow connecting the monitors to the USB cables. But the transmission is slow, so it’s not suitable for gaming.

Setup Multiple Monitors on Windows 11

The next step is to set up the monitors on your system. Make sure to power up your laptop, monitors, and adapters or docks after connecting them, and follow the instructions below:

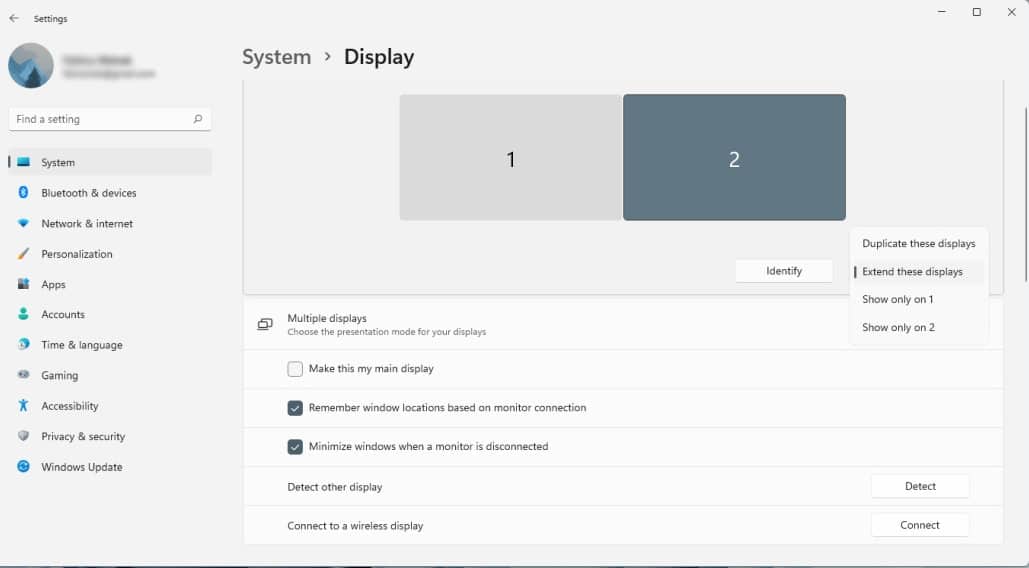

  1. Right-click on your desktop and select Display settings.
  2. You should see all your monitors on the page.
    setting-multiple-monitor-display
  3. If any monitor is missing, click on Multiple displays and select Detect. If the monitor doesn’t appear, check connections and try again.
  4. You can change the position of displays to make them consistent with your physical setup. Do so by selecting them and dragging them around with the left mouse button.
  5. Click on Identify after selecting a screen if you are not sure which monitor it refers to.
  6. After arranging them, click Apply to save the layout.
  7. To set a primary screen, select the screen you want. Then, click check Make this my main display under Multiple displays.

You can also change the view mode from the layout portion. Click on the drop-down box on the right and pick from the options. In general,

  • Duplicate: Mirrors the same display on the screens.
  • Extend: Extends the primary display across all screens.

You can also quickly change the view mode from the Project Display (Win + P).

Customize Multiple Monitor Settings

You can customize different display settings for separate monitors. To do so, select a screen from the Display settings layout and set the following display settings.

display settings
  • Scale: It changes the size of the icons and the texts. You can select from the drop-down list or click on Scale and enter a value for the Custom scaling option. Don’t forget to click the Tick button if you set a custom option.
  • Resolution: Sets the resolution for the screen. Keep in mind that very high resolution for all monitors is very taxing on your GPU.
  • Orientation: Changes the orientation of the display. We don’t recommend changing it to anything except Landscape for the main screen.
  • Night Light: Enabling it gives low-intensity light for the display during night hours. Click Night light to set the light intensity and the night hours. This setting applies to all connected monitors.
  • HDR: It allows a more vibrant display for some apps on PCs that support HDR. It also applies to all screens.

You can also customize advanced settings such as refresh rate, color profile, etc., from the Advanced display settings.

Set Background and Taskbar Settings

It is also possible to set different backgrounds for each screen. Here’s how you can do so:

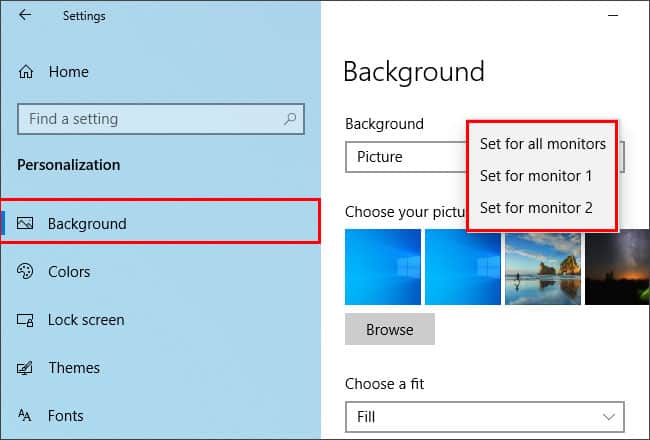

  1. Press Win + I to open Settings.
  2. Go to Personalization and click Background.
  3. Set Personalize your background to Picture.
  4. If you don’t see the background image you want in the Recent images, click Browse photos.
  5. Navigate to and select the picture and press Enter.
  6. Right-click on the picture under Recent images and choose the monitor.
    set-multiple-backgrounds-

You can also choose Slideshow for the Personalize your background option. It displays different backgrounds as slideshows for the monitors.

It is also possible to choose whether you want the Taskbar on all monitors or only the primary one. To do so,

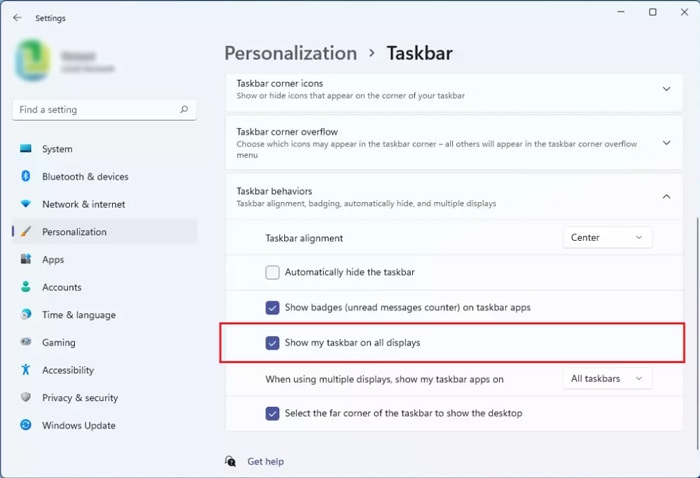

  1. Go to Settings > Personalization > Taskbar > Taskbar behaviors.
  2. Look for, and tick Show my taskbar on all displays.
    taskbar-display

Setup GPU Settings for Multiple Monitors

If you want to set up multiple monitors for gaming, you need to enable multiple screen displays on your GPU settings as well. Here are the necessary steps depending on your GPU:

NVIDIA

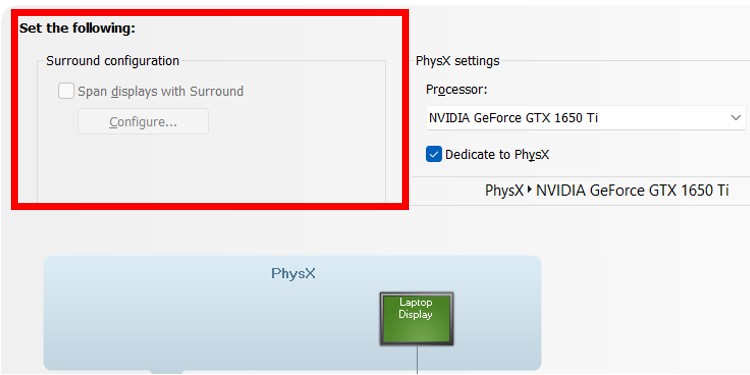

  1. Right-click on your desktop and select NVIDIA Control Panel.
  2. Go to 3D settings > Configure Surround, PhysX.
  3. Check Span displays with Surround and click Configure.
    configure in nvidia display
  4. Set your display arrangement and other options.

AMD

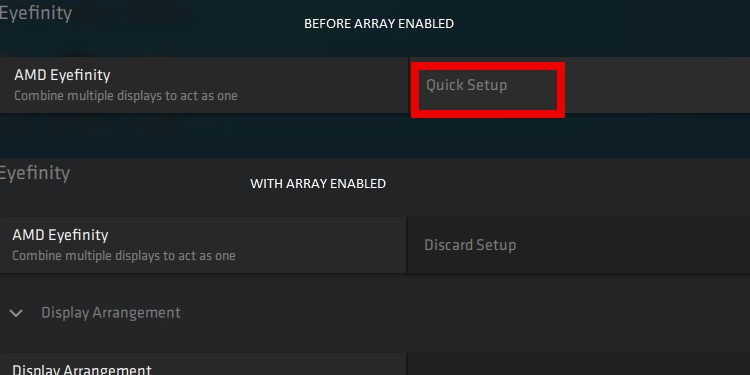

  1. Right-click on your desktop and select AMD Radeon Software.
  2. Go to Settings (gear icon) and Display.
  3. Look for AMD Eyefinity and click on Quick Setup next to it.
    Quick setup in eyefinity
  4. Set your display arrangement and other options.

Related Questions

How to Fix External Display Not Working on Windows 11?

If the external display is not working, it’s likely because of connection or driver issues. Make sure to reconnect the monitors to your PC while giving special attention. Then, update your graphics and monitor drivers.

You can also visit our articles on Windows not detecting second monitor or third monitor to troubleshoot this issue.

how-to
Abhishek Silwal
  • LinkedIn

Abhishek Silwal is an Electronics Engineer and a technical writer at TechNewsToday. He specializes in troubleshooting a wide range of computer-related issues. His educational background in Electronics Engineering has given him a solid foundation in understanding of computers. He is also proficient in several programming languages and has worked on various robotics projects. Even in his early days, he used to tinker with various computer components, both hardware, and software, to satiate his curiosity. This experience has given him a breadth of experience that goes beyond his educational qualification. Abhishek has been writing articles on dealing with varieties of technical issues and performing specific tasks, especially on a Windows machine. He strives to create comprehensive guides on fixing many system and hardware issues and help others solve their problems. You can contact him at abhisheksilwal@technewtoday.com
